The inverted pendulum cart runs along a track and is pulled by a belt connected to an electric motor. A potentiometer measures the cart position from its rotation and another potentiometer measures the angle of the pendulum.

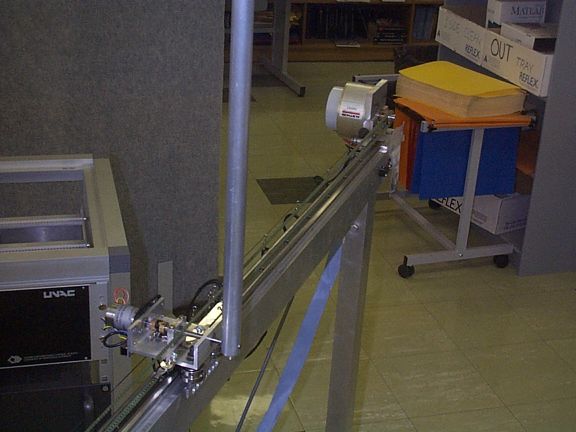

The controller in the background is a UNAC, also designed at the University of Newcastle. This next photo shows the cart construction and the driving motor.
|
